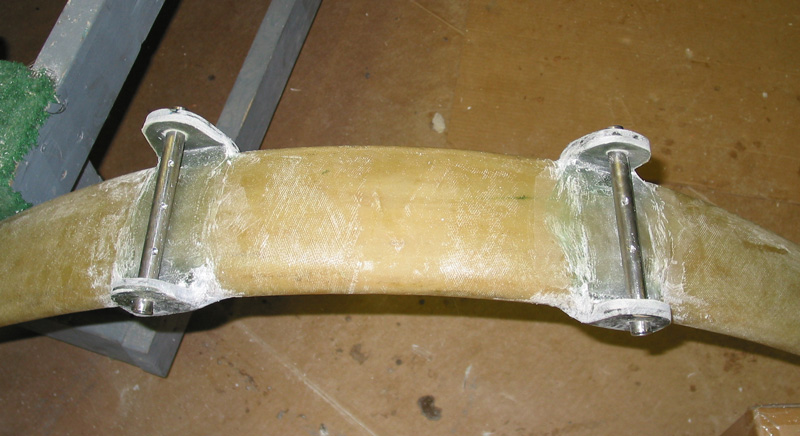

The main gear is mounted with 7" long 5/8" dia. titanium 6AL/4V bars that were drilled for an exact fit of the bolts, thus eliminating corrosion issues with the plans 5/8 steel tubes and SS end plugs. It also eliminates the chance that a bolt can bend after a hard landing which is a common occurrance leading to loose gear and ground tracking and saftey isues.

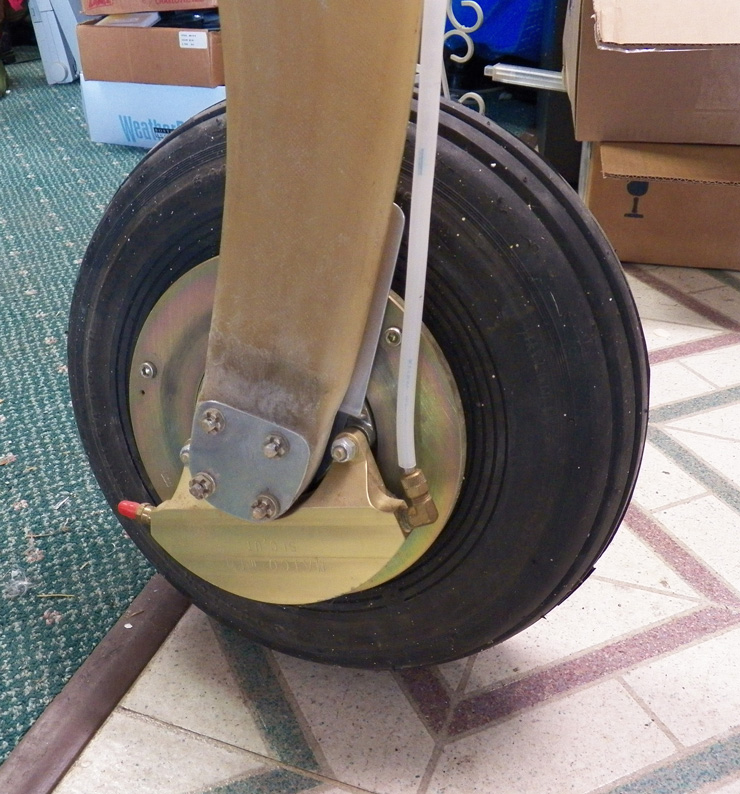

Matco triple puck brakes and Matco W51LTK main wheels
Nose mounted Matco brake cylinders installed with individual reservoirs
Parking brake and brake tubing installed.
Note the aluminum heat shields.
Right wheel below.
